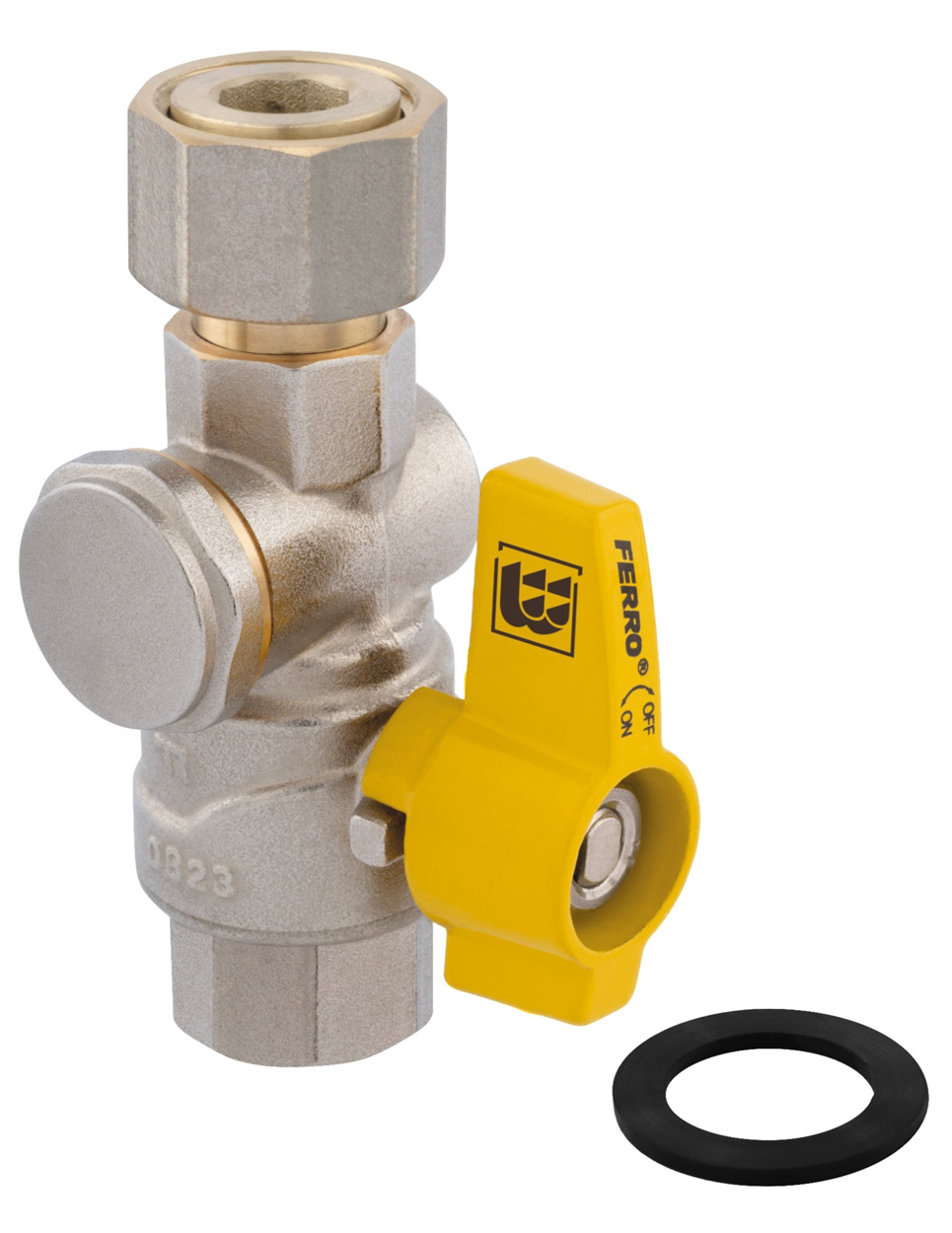

Gas ball valve straight,y-strainer, G61, FF

The gas ball valve with straight filter, type G61, FF is a compact shut-off solution for domestic gas installations. Designed as a DN15 gas valve 1/2", it combines precise flow control with effective filtration of impurities present in the gas line.

The integrated filter protects downstream appliances from particles in the medium, extending the life of boilers, heaters or cookers. The valve operates safely at a nominal pressure of MOP5 (5 bar) and within a working temperature range from -20°C to 60°C, so it fits typical residential gas systems.

The body made of CW617N brass offers high mechanical strength and resistance to corrosion, while the brass ball with PTFE seals ensures smooth, tight operation over time. A double NBR70 O-ring on the stem enhances leak-tightness, and the practical butterfly handle supports quick manual operation, even in confined spaces.

The 1/2" female-female connection suits standard gas installation threads, and the nickel-free design responds to current safety and environmental expectations. Packed on a euro hanger with barcode, this gas shut-off valve with filter is ready both for professional installers and retail sale.

Items: KGMNF1SGP

Availability: IN STOCK

Price 11,62 € (9,60 € without VAT)

Purchases are not possible in this language version.

Zvolte si variantu

:

Choosing parameters

:: plyn

Pack:: 5 ks

:: MOP5 (5 bar) bar

:: 15

:: *E produkt balen s eurozávěsem a čárovým kódem pro maloobchodní prodej

:: mosaz CW617N

:: Mosaz

:: PTFE

:: dvojitý o-kroužek NBR70

:: plyn

:: 1/2"

:: motýlek

:: vešák

:: T2 (-20°C do 60°C) °C

:: Ano

:: Rp 1/2

:: 39,6

:: 85,9

:: 39,5

:: 50

:: 8kt 25,5

:: 14,5

:: 15

:: 11,2

:: G 1/2

Documents for download

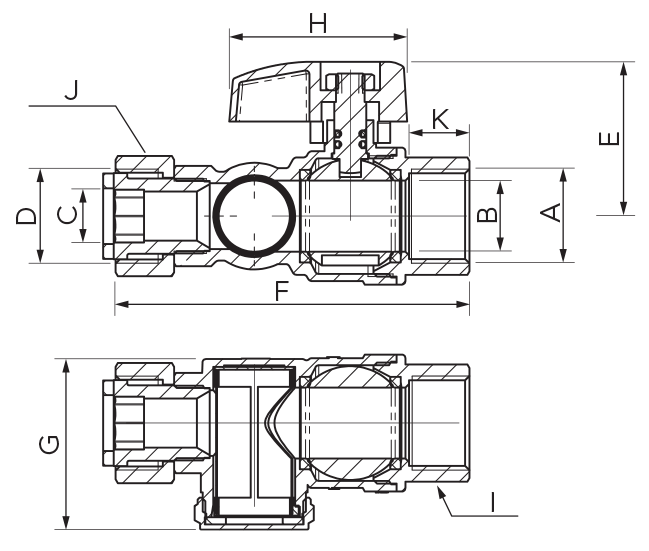

dimensions(jpg) Declaration of conformity CZ
