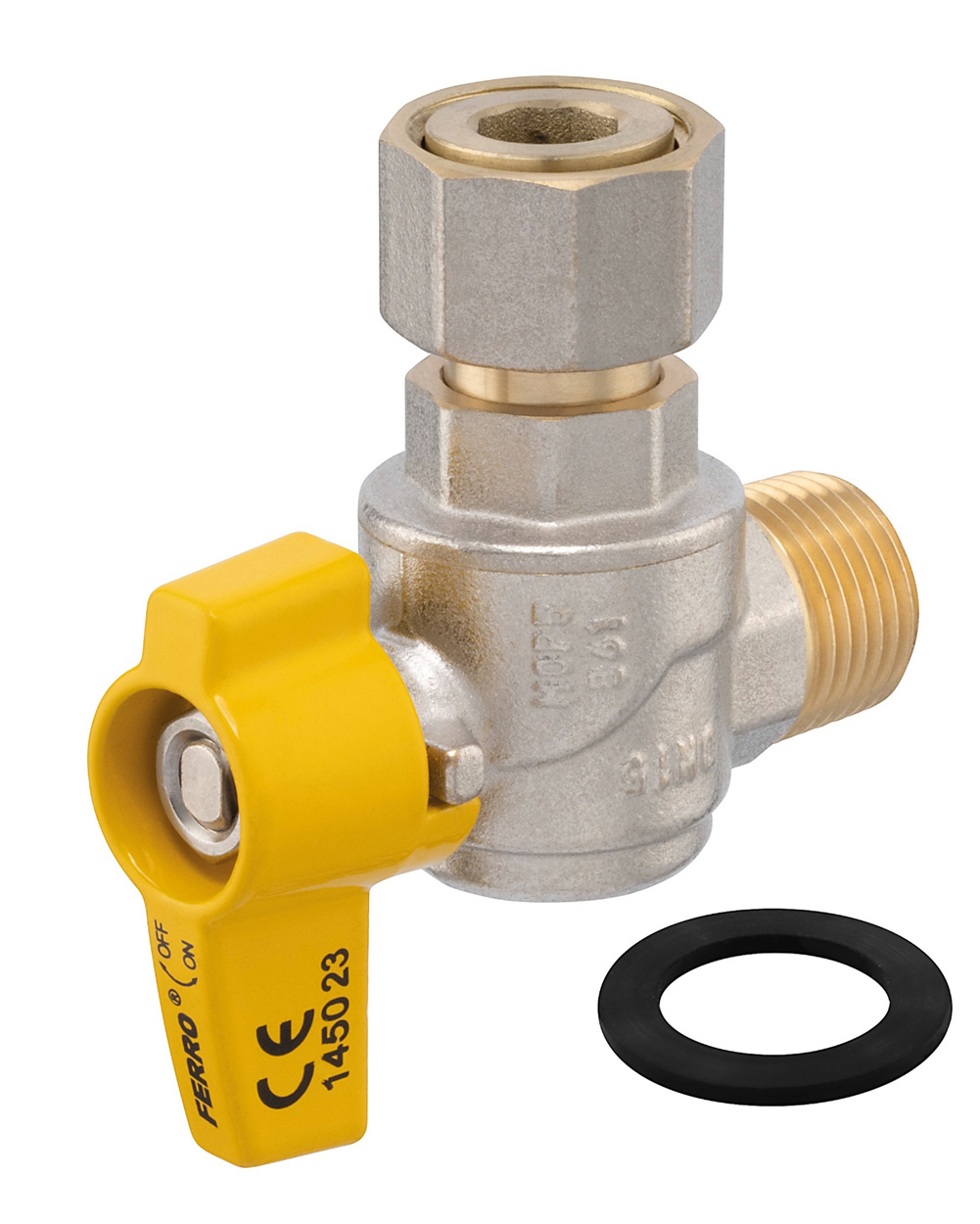

Gas ball valve angled, Type G61, FM

The angled gas ball valve, type G61, FM is a compact control element for domestic gas installations, ideal wherever a reliable 1/2" gas shut-off valve is required. The angled body helps organize pipe routing near the wall and supports neat, accessible installation in confined spaces.

Designed for gas media up to MOP5 (5 bar) and a working temperature range from -20°C to 60°C, the valve suits typical residential gas systems. The DN15 flow diameter matches standard gas pipes, so it integrates easily into existing lines and supports stable operation of appliances.

The body made of CW617N brass offers high mechanical strength and resistance to corrosion, while the brass ball with PTFE seals provides smooth, tight closing of the gas flow. A double NBR70 O-ring on the stem enhances leak tightness over time. The practical butterfly handle enables quick manual operation, even in narrow recesses. The product is nickel-free, which benefits users sensitive to nickel and fits stricter material requirements.

The angled gas ball valve is a solid choice for installers and homeowners looking for a durable gas shut-off valve DN15 for 1/2" connections. It works well in modern gas pipe systems and supports safe, convenient control of gas supply in everyday use.

Items: KGMN1SGK

Availability: IN STOCK

Price 9,63 € (7,96 € without VAT)

Purchases are not possible in this language version.

Zvolte si variantu

:

Choosing parameters

:: plyn

Pack:: 10 ks

:: MOP5 (5 bar) bar

:: 15

:: *E produkt balen s eurozávěsem a čárovým kódem pro maloobchodní prodej

:: mosaz CW617N

:: Mosaz

:: PTFE

:: dvojitý o-kroužek NBR70

:: plyn

:: 1/2"

:: motýlek

:: vešák

:: T2 (-20°C do 60°C) °C

:: R 1/2

:: 40,1

:: 41,2

:: 72,1

:: 50

:: 8kt 25,5

:: 13,5

:: 15

:: 11,2

:: G 1/2

Documents for download

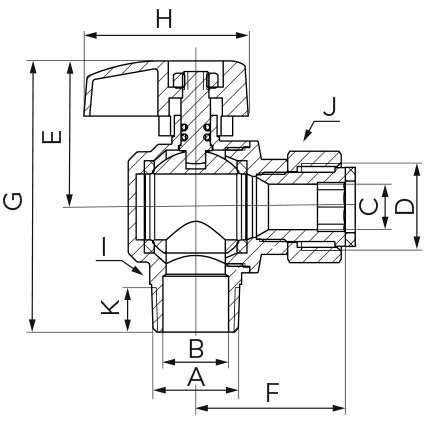

3D (step) dimensions(jpg)
