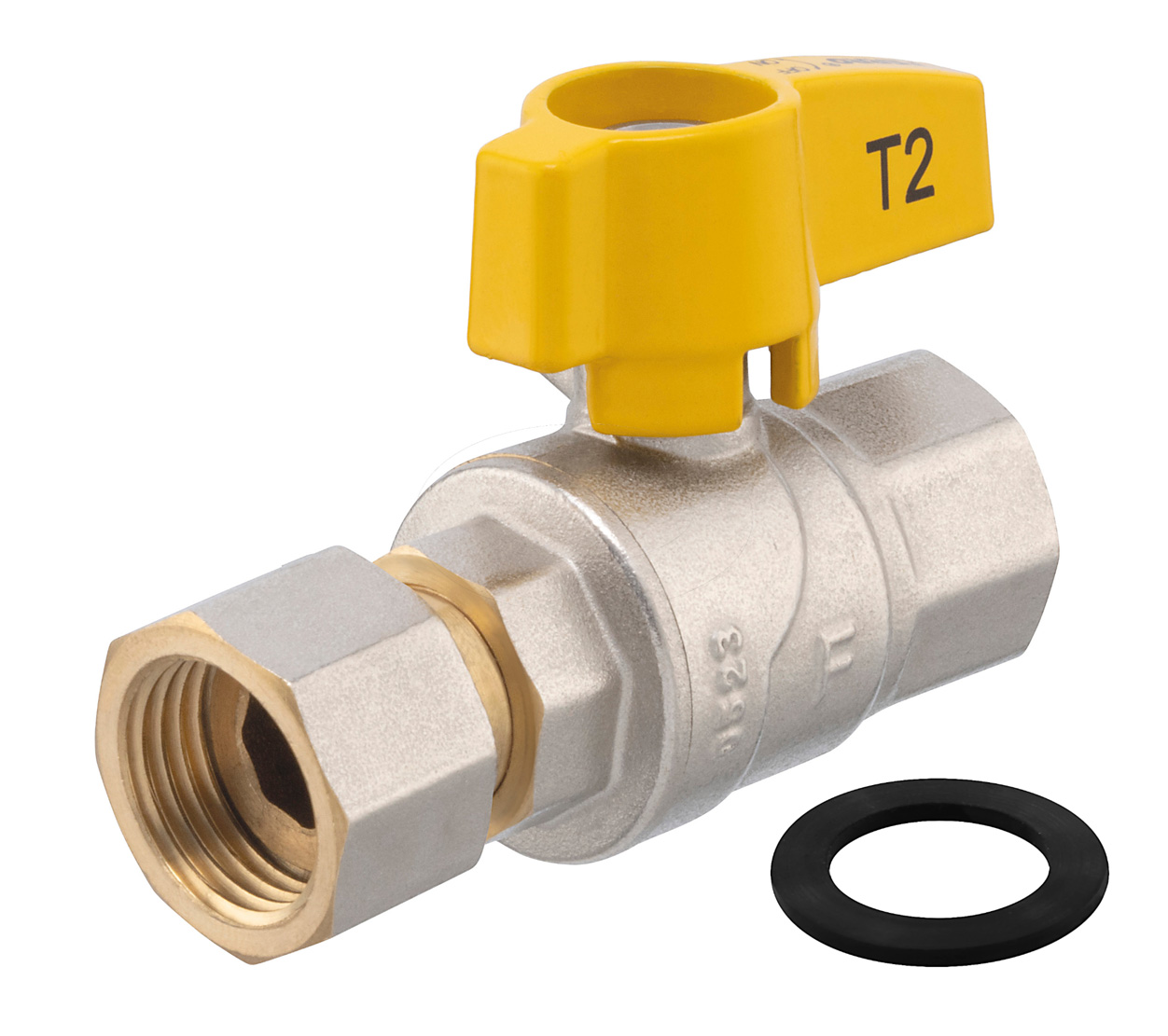

Gas ball valve straight, Type G61, FF

The straight gas ball valve, type G61, FF is a compact and reliable shut-off element for domestic gas installations. With a nominal diameter DN15 and 1/2" connections, it fits standard gas pipes and works well as a precise gas shut-off valve in residential and small commercial systems.

The valve is designed for gas media and operates at a nominal pressure of MOP5 (5 bar), so it performs well in typical low-pressure gas networks. The working temperature range T2 from -20°C to 60°C supports stable operation both in unheated rooms and in warmer indoor spaces. The butterfly handle enables quick, intuitive operation, useful during installation, maintenance or emergency shut-off.

The body made of CW617N brass offers high mechanical strength and resistance to corrosion, while the brass ball combined with PTFE seals ensures smooth, tight closing over long-term use. The stem is sealed with a double NBR70 O-ring, which reduces the risk of gas leakage and supports installation safety. The valve is nickel-free, an advantage for users who avoid nickel-plated components in their systems.

The straight gas ball valve 1/2" is a solid choice for installers and investors looking for a durable gas shut-off valve for DN15 pipelines. Standard dimensions and hanger packaging with a barcode facilitate storage, retail sale and quick identification on site.

Items: KGMN1SGP

Availability: IN STOCK

Price 9,20 € (7,60 € without VAT)

Purchases are not possible in this language version.

Zvolte si variantu

:

Choosing parameters

:: plyn

Pack:: 12 ks

:: MOP5 (5 bar) bar

:: 15

:: *E produkt balen s eurozávěsem a čárovým kódem pro maloobchodní prodej

:: mosaz CW617N

:: Mosaz

:: PTFE

:: dvojitý o-kroužek NBR70

:: plyn

:: 1/2"

:: motýlek

:: vešák

:: T2 (-20°C do 60°C) °C

:: Rp 1/2

:: 39,6

:: 70,2

:: 50

:: 8kt 25,5

:: 15

:: 15

:: 11,2

:: G 1/2

Documents for download

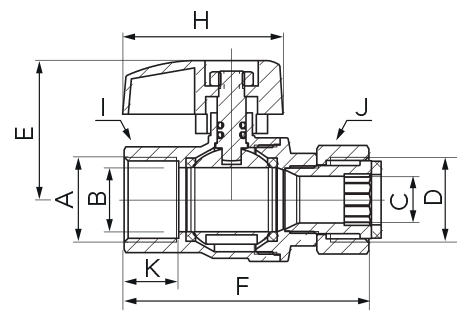

dimensions(jpg) 3D (step)
