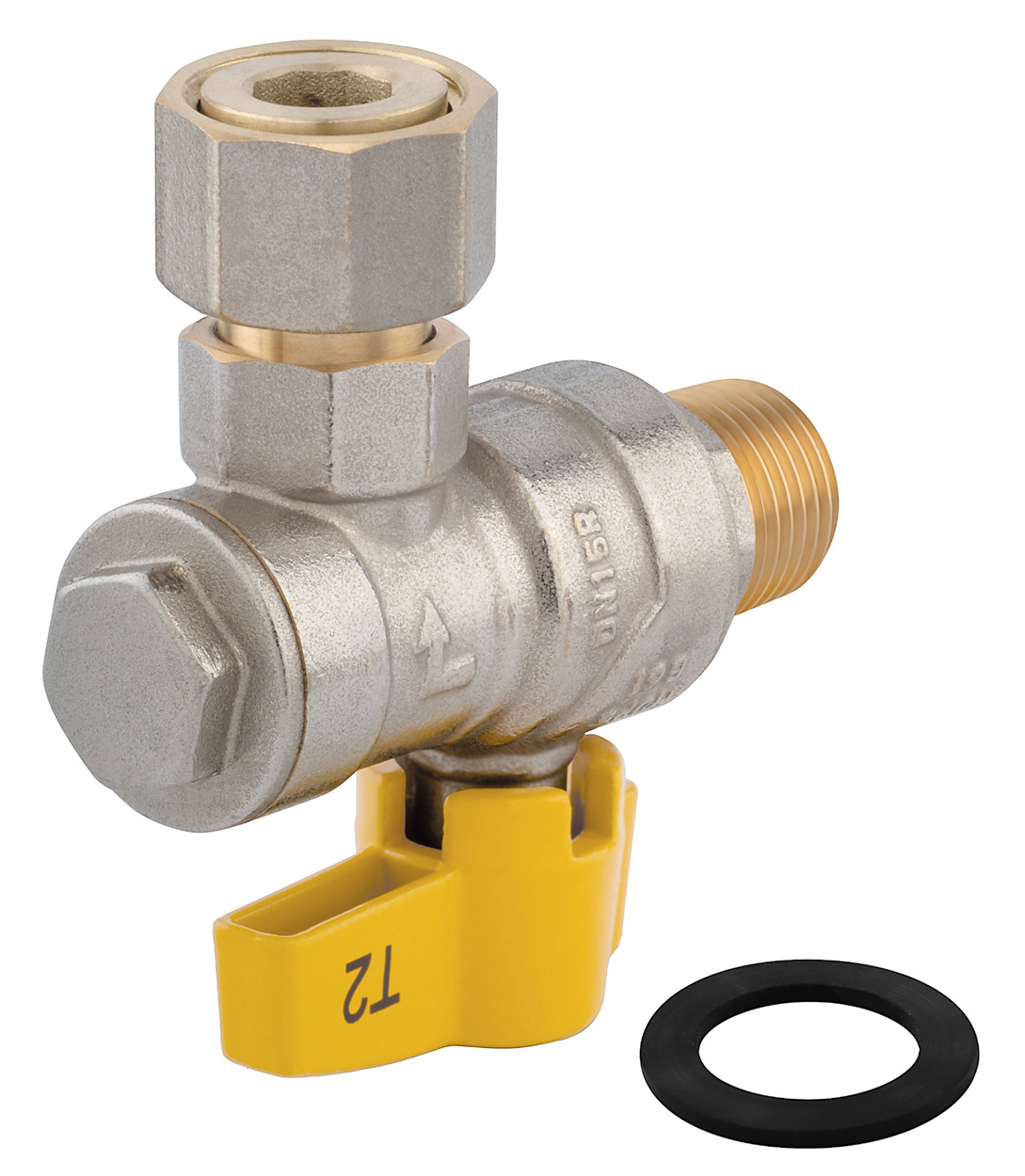

Gas ball valve angled,y-strainer, G61, FM

The gas ball valve with integrated filter, angled, Type G61, FF is a compact control element for domestic gas installations. Designed for DN15 pipelines with 1/2" connections, it combines shut-off and filtration in one body, supporting safe and efficient operation of gas appliances.

The built-in filter captures fine particles from the gas medium before they reach the device, which extends the service life of boilers, heaters or cookers. The valve is rated for MOP5 (5 bar) and operates in the T2 temperature range from -20°C to 60°C, so it fits typical residential gas systems. As a 1/2" gas valve with ball mechanism, it offers precise and quick shut-off in everyday use.

The body made of CW617N brass and a brass ball provide high mechanical strength and resistance to wear, while PTFE ball seals support tight closure over time. A double NBR70 O-ring on the stem reduces the risk of leakage at the spindle. The nickel-free design is suitable for users who avoid nickel-coated components, and the butterfly handle gives a firm grip even in confined spaces.

With its angled form, integrated filtration and durable brass construction, this DN15 ball valve with filter is a reliable choice for installers and homeowners looking for a robust gas shut-off solution ready for long-term service.

Items: KGMNF1SGK

Availability: IN STOCK

Price 11,62 € (9,60 € without VAT)

Purchases are not possible in this language version.

Zvolte si variantu

:

Choosing parameters

:: plyn

Pack:: 8 ks

:: MOP5 (5 bar) bar

:: 15

:: *E produkt balen s eurozávěsem a čárovým kódem pro maloobchodní prodej

:: mosaz CW617N

:: Mosaz

:: PTFE

:: dvojitý o-kroužek NBR70

:: plyn

:: 1/2"

:: motýlek

:: vešák

:: T2 (-20°C do 60°C) °C

:: Ano

:: R 1/2

:: 39,6

:: 78,7

:: 79,3

:: 50

:: 8kt 25,5

:: 12,5

:: 15

:: 11,2

:: G 1/2

Documents for download

Declaration of conformity CZ dimensions(jpg)
