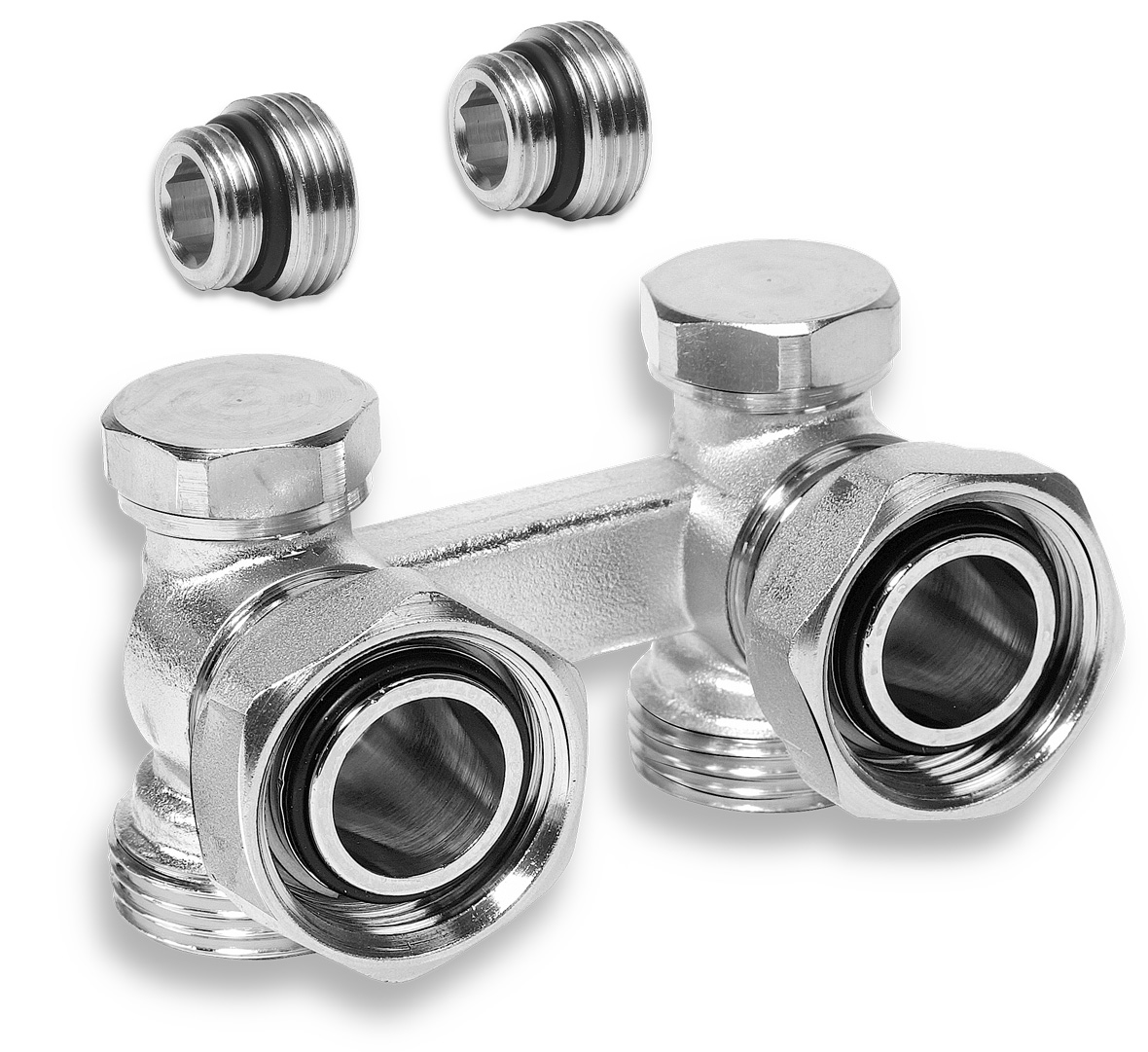

Double valve for bottom connected radiators 3/4"x1/2", angle

The angled connection valve for bottom-connected radiators is a compact fitting designed for neat and reliable radiator installation. It organizes the connection close to the wall and works well both in new systems and during modernization of existing heating circuits.

This angled radiator valve with 3/4" connection is adapted for water as the heating medium and operates at a nominal pressure of up to 10 bar, so it performs well in typical domestic installations. The maximum operating temperature of 100°C supports stable work with high-temperature heating systems and helps maintain consistent radiator performance throughout the season.

The body made of brass offers high resistance to corrosion and mechanical wear, extending the service life of the installation. Threaded connections GZ 3/4" x GW 3/4" or GZ 3/4" x GZ 1/2" with included reducing nipples make it easier to match the valve to different radiator and pipe standards without additional adapters.

The angled radiator valve is a practical choice for anyone looking for a durable valve for a radiator, combining solid materials, proven operating parameters and convenient installation in a discreet, technical form.

Items: LZ07YK

Starý kód produktu:: RA351/25

Availability: IN STOCK

Price 19,12 € (15,80 € without VAT)

Purchases are not possible in this language version.

Choosing parameters

:: 3/4"

:: 100 °C

Pack:: 10 ks

:: 10 bar

:: *W v obale s čárovým kódem pro maloobchodní prodej *E produkt balen s eurozávěsem a čárovým kódem pro maloobchodní prodej

:: Mosaz

:: voda

:: 3/4"

:: přípojky GZ 3/4” x GW 3/4” nebo GZ 3/4” x GZ 1/2” – včetně redukčních vsuvek

Documents for download

Declaration of conformity En. images for print Technický list-LZ07YK dimensions(jpg)
