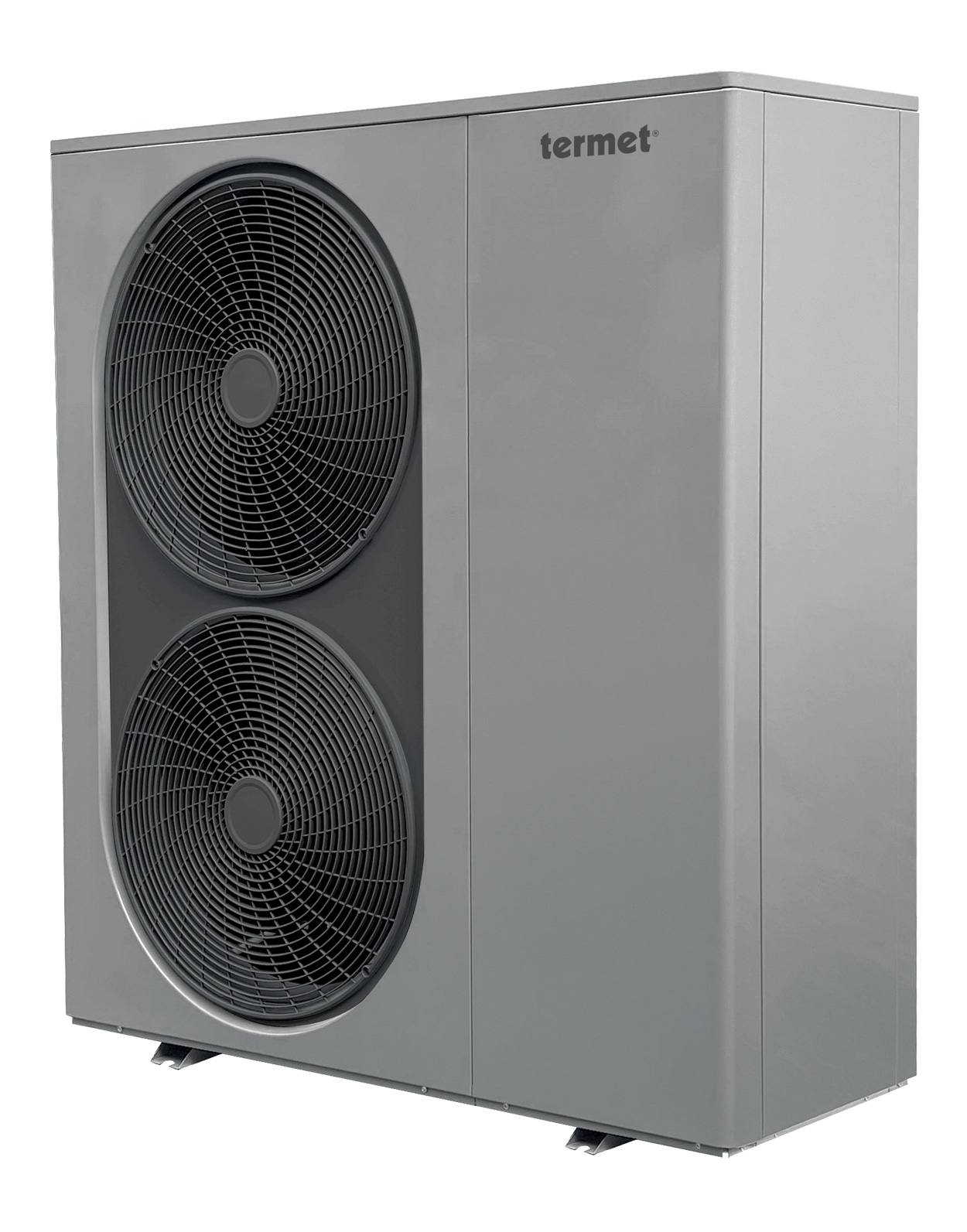

TERMET HEAT GOLD 20 DC

TERMET HEAT GOLD is an exceptionally eco-friendly heat source because it utilizes energy stored in the air.

The components used in these pumps ensure high performance and technical parameters, achieving an A+++ energy efficiency class for space heating.

Additionally, by using the SmartGrid function, which enables intelligent integration of pumps with photovoltaic panels, you can achieve even greater savings by taking advantage of variable tariffs.

Our reversible pumps perform several functions – they can be used not only for space heating, but also for heating domestic hot water, or for cooling in the summer.

• Modern, reversible, monobloc heat pump
• Can be installed outdoors
• Highly efficient Mitsubishi inverter compressor
• Electronic expansion valve
• Eco-friendly R32 refrigerant (GWP only 675)
• Extremely economical heat pump with A+++ (A7/W35) rating
• Wide supply temperature range of 30-60°C
• Weather-resistant sheet metal housing
• Quiet operation

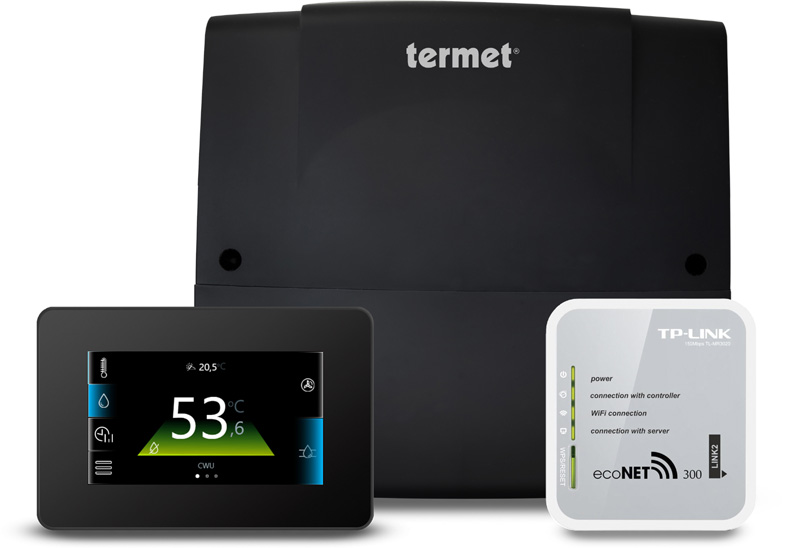

• Easy heat pump control using the HPmulti controller – the controller is equipped with a color touchscreen
• Ability to control and monitor heat pump operating parameters online using the ecoNET300 module
• HPmulti controller and ecoNET300 module included with the heat pump

Items: TPP9904000000/PL

Starý kód produktu:: EV-DCM20

Availability: 19.04.2026

Price 12 959,97 € Cena je včetně recyklačního příspěvku ve výši 350,00 €
(10 710,72 € without VAT)

This product is currently not for sale.
Kontaktujte obchodní oddělení

Choosing parameters

:: 20 kW

Height:: 1415 mm

Width:: 1365 mm

Depth:: 515 mm

Warranty:: 2-7 roky

:: 380V/3/50Hz

:: R32

:: A+++

:: venkovní

:: Ano

:: reverzní

:: IPX4

:: 4,4

:: 3,02

:: 675

:: 2.8 kg

:: 69 dB

:: 16.8 kW

:: 5.6 kW

:: 23 kW

:: 5.1 kW

:: 170 kg

:: 1365 x 1415 x 565 mm

:: od -25 do 43 °C

:: do 55 °C

Documents for download

Technický list-TPP9904000000/PL Declaration of conformity CZ Technický list Video 360 dimensions(jpg)
