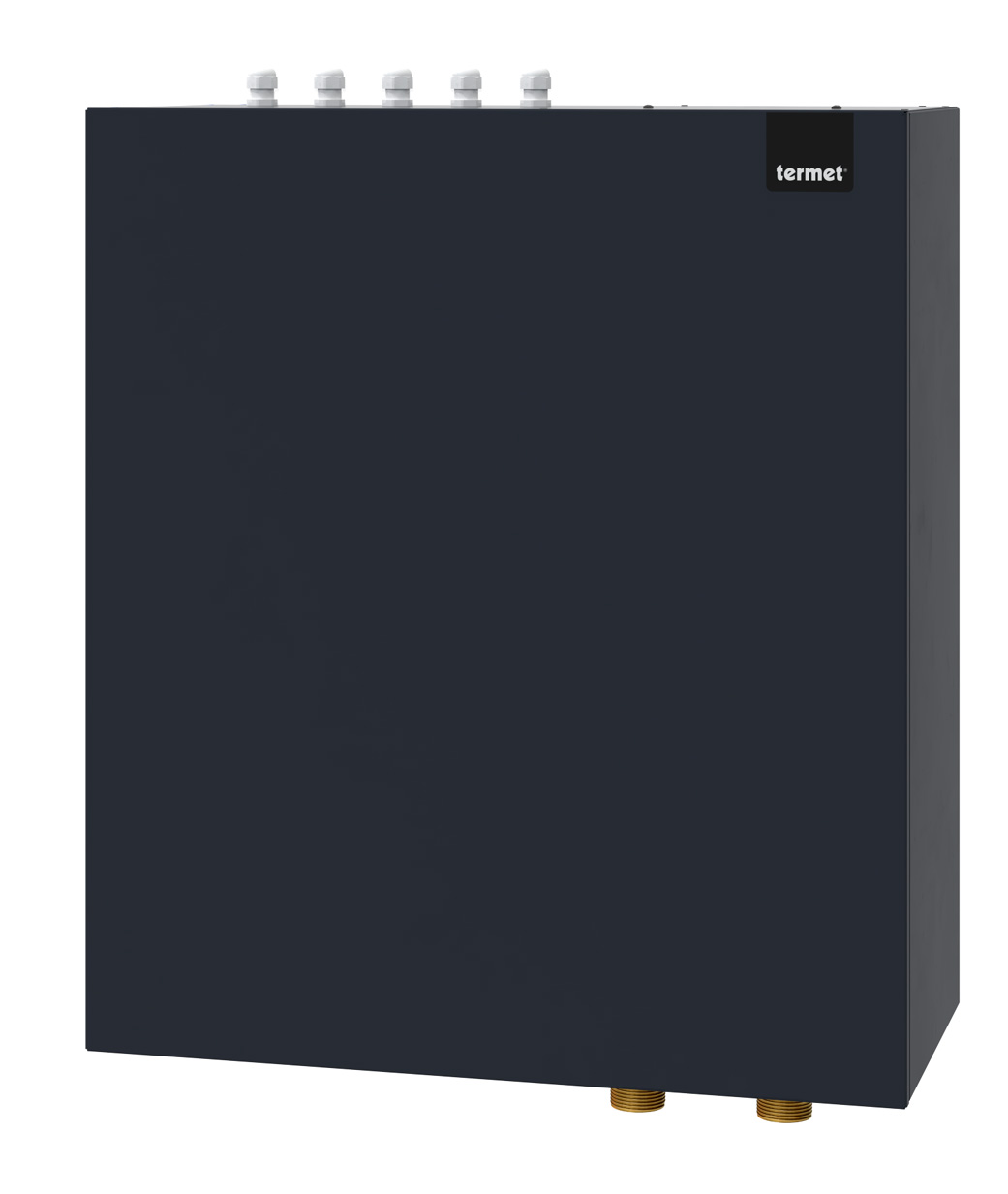

T-BOX 18 P | NOVASERVIS

Designed to work with a monobloc heat pump, the T-BOX is a compact solution that simplifies connection to the central heating system by minimizing the required installation work. The components are housed in an elegant housing, making the device a perfect fit for any interior.
The T-BOX is equipped with components that ensure the proper operation of the entire system.
• Designed for use with monobloc air-to-water heat pumps with capacities up to 18 kW (A7/W35).
• All necessary components are housed in a single housing, saving space;
• Compact dimensions allow for installation even in small rooms;
• Elegant graphite-colored housing, resistant to corrosion and moisture;
• Significantly simplifies and shortens heat pump installation time;
• Safe to use thanks to numerous safety features;
• Installer-friendly design with easy access (from the front of the unit) to all components;
• Top-quality components, ensuring a long service life;
• Available in several configurations, it can be tailored to the requirements of almost any installation.
The T-BOX is equipped with:
• a circulation pump for the upper heat source, ensuring adequate water flow in the system
• a central heating system expansion vessel, protecting the system from pressure increases
• a three-way diverter valve
• a magnetic filter and sediment trap, protecting not only the system but also the heat pump from contamination
• safety components
• a pressure gauge, allowing for convenient pressure monitoring without removing the front cover

Items: WHB8823000000/PL1

Starý kód produktu:: TBOX18P

Availability: 19.04.2026

Price 2 195,96 € (1 814,84 € without VAT)

This product is currently not for sale.
Kontaktujte obchodní oddělení

Choosing parameters

:: 36.5 kg

:: 310 x 650 x 745 mm

Documents for download

Technický list-WHB8823000000/PL1
